Wireless Remote Controls
|
|
|
|
|
|
PX5-T10
|
TX-PRO White
|
DMX-Link-V2.0
|
|
|
|
|
|
PX5-600I 5 color mixing RGBAW
|
|
PX5-600I is our brightest fixture with 30 1 WATT LEDS. (6 of each color RGBAW) PX5-600I offers the new option of beam width of 10, 25 and 60 degree beams to choose. The 60 degree beam has been the preferred beam width by most event planners as it offers the best wall wash option with the wide beam but if you need more punch the 25 degree will get you there. We also offer in 10 degree but is only recommended for only our ProWhite series as its not a good choice for color mixing. Enclosed is a powerful 18 AH li-ion battery that will power the PX5-600I for 7 hours at full RGB.
|
|
|
|
|
PX5-250I -GEN2 5 color mixing RGBAW
|
PX5-250I -GEN2 wireless LED fixture is powered by Li-ion batteries to power the 10 high bright 1 watt LEDS for wall washing and general illumination.
The GEN2 replaces the original PX5-250I fixture with the same foot print, controls and 8 hour run time as the original. PX5-250I-GEN2 offers the new option of beam width of 10, 25 and 60 degree beams to choose. The 60 degree beam has been the preferred beam width by most event planners as it offers the best wall wash option with the wide beam but if you need more punch the 25 degree will get you there. We also offer in 10 degree but is recommended for only our ProWhite series as its not a good choice for color mixing.
Read more.....
|
|
 |
|
|
Case holds 10 PX5-250I-GEN2 and fully loaded weighs 39 lbs
|
|
DL5-80 5 color mixing RGBAW
|
|
|
The DL5-80 is the next generation fixture to replace the popular DL75.. The ultra wide beam to light up tables, columns and acrylic furniture with a pure color glow. The DL5-80 has a custom diffuser lens to blend the RGBAW LED's and eliminate rainbow effect and color rings. The five 1 watt LED's are powered by lithium ion batteries for 8 hour run time at full RGB.
The DL5-80 measures 4.5 L x 3.5 W x 2.5 H . Weighs only 1.2 pounds.
Read more....
|
DL5-80
|
 |
|
|
|
Click here to print out an actual size picture |
Case holds 18 DL5-80
|
|
|
|
|
|
The MiniFlex-Color wireless LED fixture is a small compact design with all the features found in the ColorMaker line of LED products. We designed the MiniFlex-Color with the highest standards to include powerful Li-ion battery to achieve an 8 hour run time at full RGB.
The custom optics has superior color mixing and clean 15 degree beam. Fully dimmable from 0-100 % with a range of 16 million colors with any of our wireless remotes.
Magnetic Base
The MniFlex-Color has a magnetic base with a holding power to safely secure to steel truss or structure. Aluminum is not magnetic and will NOT secure the fixture safety be sure to check before mounting.
|
 |
Transport case holds 10 MiniFlex-Color
|
|
|
|
|
DL5-250 5 color mixing RGBAW
|
|
|
|
|
|
The DL5-250 is a super bright, compact, light weight RGBAW wireless LED fixture. The ultra wide beam to light up tables, columns and acrylic furniture with a pure color glow. The DL5-250 has a custom diffuser lens to blend the RGBAW LED's and eliminate rainbow effect and color rings. The ten 1 watt LED's are powered by lithium ion batteries for 10 hour run time at full RGB, 7 hours full RGBAW. The DL5-250 measures 6.5 inches square and a height of only 2.1 inches. Weighs only 2.2 pounds.
Read more...
|
Transport case holds 10 DL5-250. Fully loaded weighs 47 pounds.
|
|
|
|
|
|
|
|
Mini Pin
The MiniPin wireless LED fixture is a small compact design with all the features found in the ColorMaker line of LED products. The Mini Pin will be offered for both the PX series RGB and the PX5 series RGBA and RGBW. We designed the Mini Pin with the highest standards to include powerful Li-ion battery to achieve an 8 hour run time at full RGB and a powerful high bright LED with a 15 degree optic for pure colors. Even with all these features the Mini Pin weighs in at only 1.2 lbs.
Read more.......
|
|
|
|
|
|
|
|
MiniFlex-Spot Ultra narrow 3 degree beam (White)
|
|
|
MiniFlex-Spot
Ultra narrow 3 degree beam with clean soft round high lighter. The custom optics has zero light spill outside its ultra narrow 3 degree beam. Fully dimmable from 0-100 % wireless from 400 feet with any ColorMaker wireless radio remote. Auto program feature automatically set the control channel.
Adjustable goose neck head and magnetic base will enable user to place and target the beam. The Cree 1 watt LED is powered by Li-ion battery technology and will run the MiniFlex-Spot for 10 hours at full power.
The MiniFlex-Spot produces a clean white light in the 65000K cool white and users can attach color gels and diffusers to adjust the desired colors.
Gels and diffusers can be easily installed and removed instantly with the special designed flex head. Read more........
|
|
Transport case holds 10 MiniFlex-Spot
|
|
Available in Decor Gray and DJ Black
|
|
|
|
|
MiniFlex-Glow 360deg x 270deg Glow Field RGBW
|
|
|
|
|
18 inch globe Red
|
|
|
|
18 inch globe White
|
|
|
|
|
|
|
|
18 inch globe Green
|
18 inch globe to scale
|
|
|
MiniFlex-Glow
MiniFlex-Glow designed to light hanging globes, lanterns and shapes with the unique glow head with a 360 degree x 270 degree glow field. The Cree RGBW LED is powered by Li-ion battery technology to power the MiniFlex-Glow 8 hours ant full power. The MiniFlex-Glow is small enough to fit inside a 16 inch globe but bright enough to light up 36 inch globes.
Adjustable goose neck head and magnetic base will enable user to place and target the glow field or optimal illumination.
All the feature found in
ColorMaker fixtures are also available in the MiniFlex-Glow including ColorRoll, auto addressing.
Read more........
|
|
|
|
|
|
|
|
Li-1210 Battery pack was designed to replace the D1210 Lead Acid (GMA) battery. Li-1210 can be used an all ColorMaker wireless LED fixtures from our first fixture back in 2003 DCR-27 to our PX5-300. This includes DCR-27, DCR-54, PSE-250, PS-250, PX-250,PX5-300 models. The Li-1210 is also a smart battery that will guard the internal li-ion cells from over current and short circuit. The output is a steady 12.5 volt and can drive fixtures up to 1.5 AMPS. The Li-1210 can power our PX5-300 for 10 hours at full RGB and be recharged in less than 5 hours using our Li-1800 charger.
Li-1210 weighs 3 lbs and measures (9 L x 5 W x 2.5 H)
|
|
|
|
|
|
|
PX-RGB-LED is a wireless receiver that will communicate with all ColorMaker remote RF transmitters. Small compact design will drive any 12 volt LED cluster or strip. All Colormaker technology including ColorRoll , Color Effects and Auto Programming are coded into the PX-RGB-LED dongle. Common Anode LED's connect to removeable terminal block. The PX-RGB-LED is powered by 12 volt from a 2.5 mm power jack or hard wired to terminal block. Each output can drive up to 2 AMPS for a total output of 6 AMPS.
|
|
|
|
|
|
|
PX-RGB-DMX is a wireless receiver that will communicate with all ColorMaker remote RF transmitters. The radio signal from the remote is converted to a DMX signal and can be used to control any RGB LED fixture with a DMX input. All Colormaker technology including ColorRoll , Color Effects and Auto Programming are coded into the PX-RGB-DMX dongle. The DMX output is through a 3 pin XLR connector.
The design is small and compact and in most cases the PX-RGB-DMX dongle can connect directly to the DMX jack on the LED fixture with a short barrel connector. The PX-RGB-DMX can be powered by 12 volt AC adapter or 9 volt battery for 100% wireless operation.
|
|
|
|
|
|
Fixture Stand and Accessories
|
|
|
|
|
|
 |
|
PCON1-12 (1 foot )
PCON1-120 (10 foot)
|
KB40 Fixture Knob
|
Quick Hardware
Set of 2
|
Fixture Stand
Standard
|

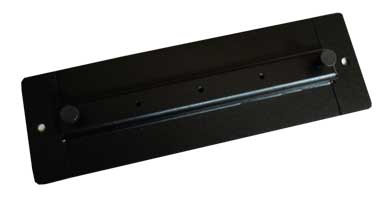

Fixture Stand
Low Profile
|
Remote Case
CM-T10 and PX-T10
|
|
ColorMaker Li-ion Battery Chargers
|
|
|
|
LI-700
Lithium Ion
MiniPin, MiniFlex
|
LI-1800
Lithium ion
DL5-250
|
|
|
Copy write 2018 ColorMaker Inc - (407) 862-3363
|
